Rugo™ R1S Drone Light Systems

$223.99$290.00

Each system comes with (2) Rugo™ R1S lights and a set of drone mounts. Each light has a Quick Swap® Power Pack with Strobe that meets FAA regulations for UAV night flight and anti-collision lighting.



Description

The Rugo™ R1S Drone Light Systems are designed for use with either:

  1. DJI Inspire 2 and Matrice 300, 600 Drones
  2. DJI Matrice 200, Matrice 210 and Terraview RangePro X8 Drones
  3. DJI Phantom 4 and Phantom 4 Pro Drones
  4. Yuneec Typhoon H and H520 Drones

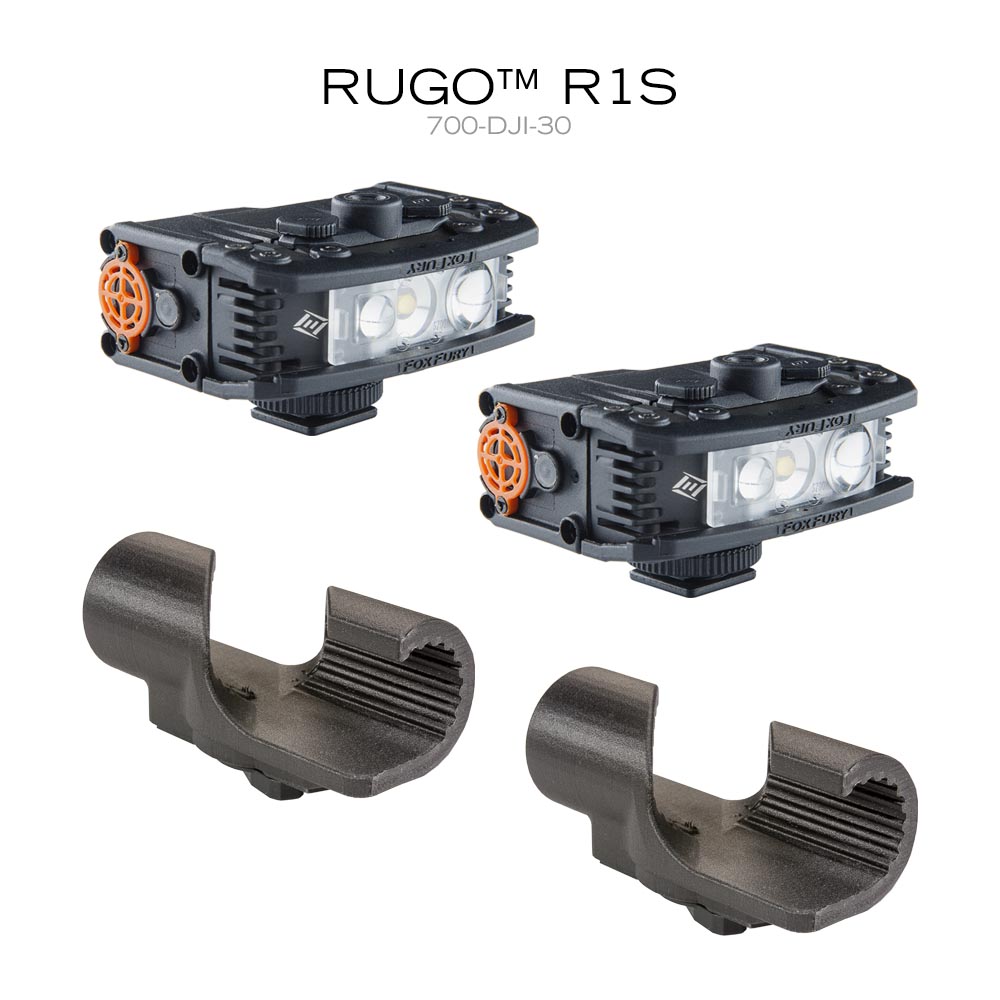

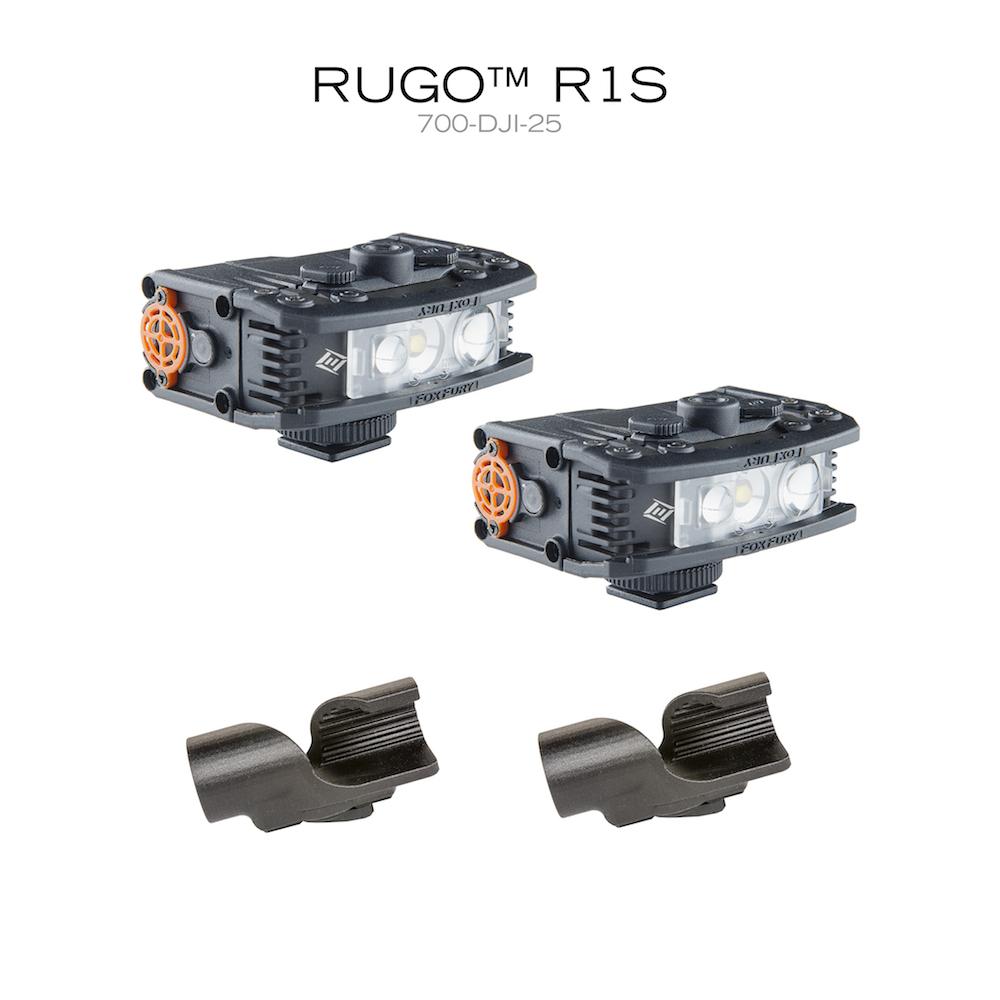

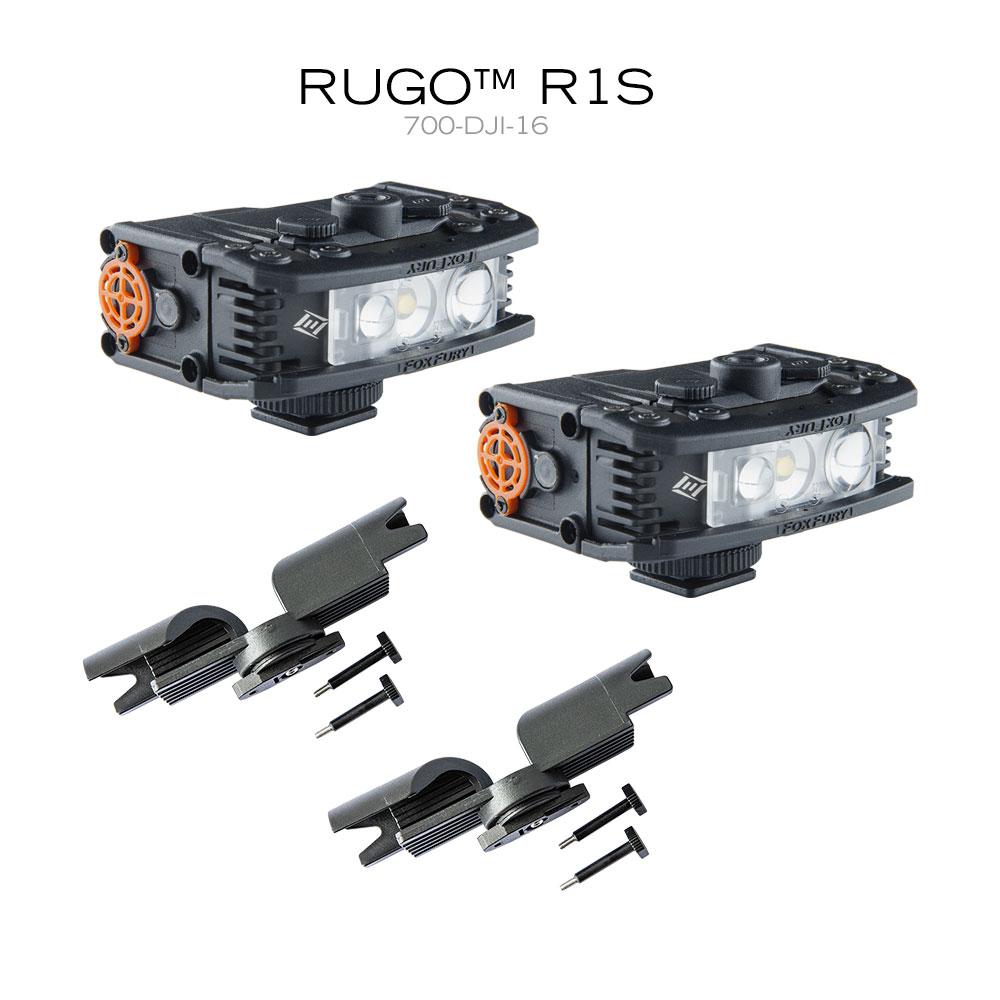

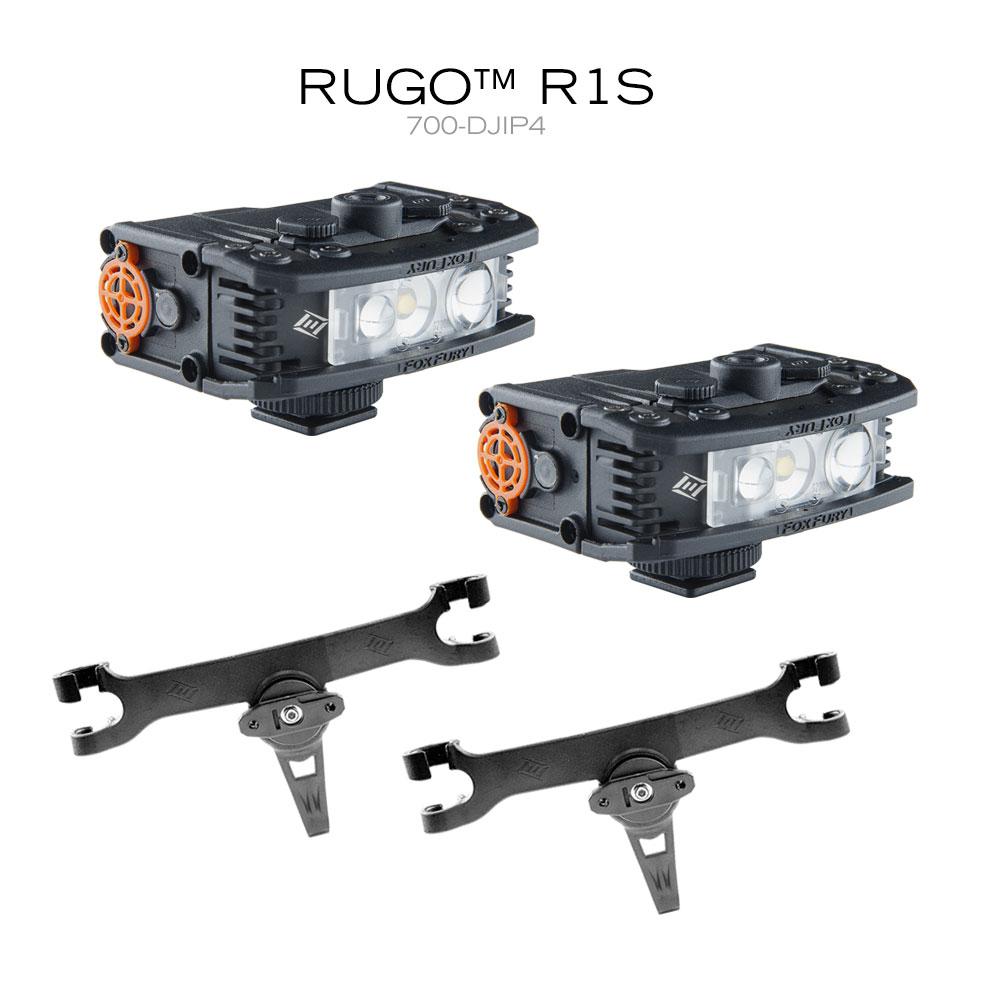

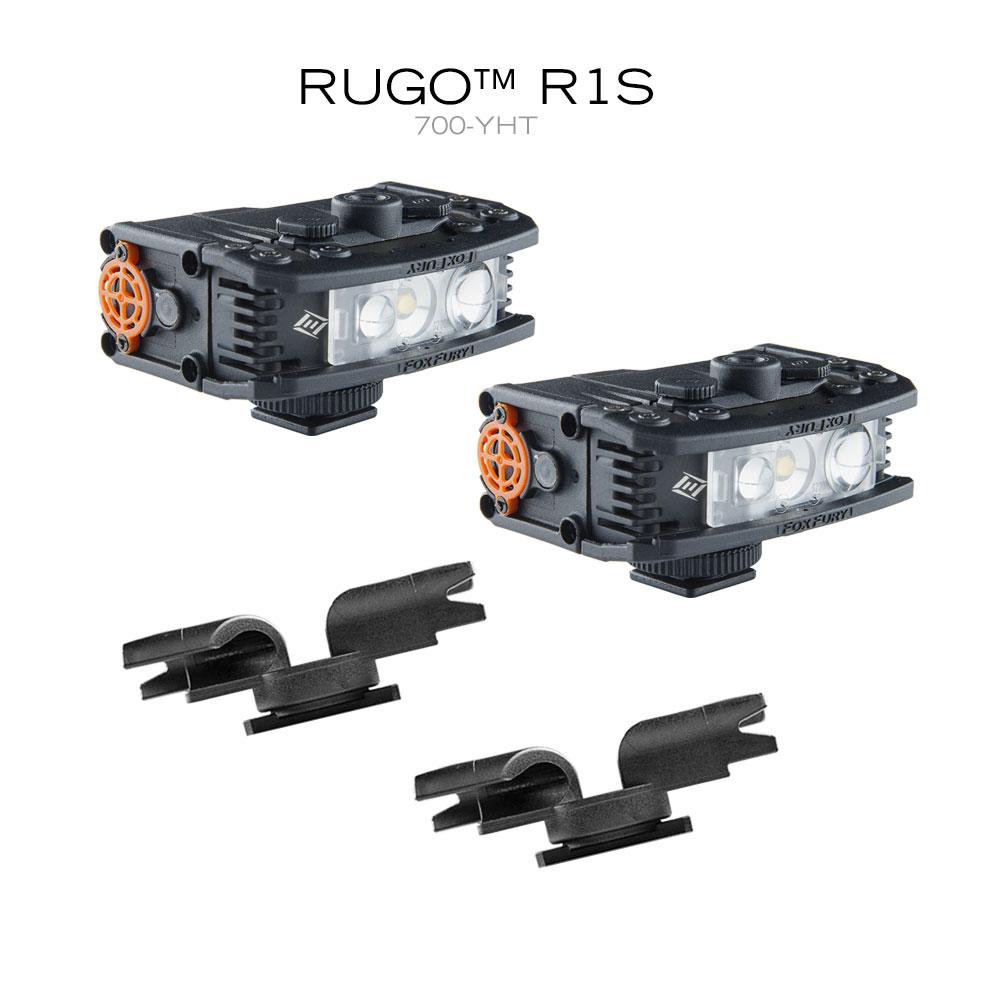

Each system comes with (2) Rugo™ R1S lights and a set of drone mounts. Each light has a Quick Swap® Power Pack with Strobe that meets FAA regulations for UAV night flight and anti-collision lighting.

The R1S Drone Light Systems are best for search, inspection, mapping, and assessments. The R1S puts out up to 700 lumens and has an operational beam distance of up to 100 ft (30 m).

NOTE: using two Rugo™s along with the included set of mounts is recommended in order to maintain the drone’s center of gravity. Please make sure you follow all local and FAA requirements for night flight and have waivers filed if necessary.

Key Features for All Rugos™:

  • Rechargeable Quick Swap™ Power Pack with Strobe
    The Rugo™ R1S and RCS have a rechargeable Quick Swap® Power Pack with Strobe. The strobe mode meets FAA regulations for UAV night flights and anti-collision lighting. The Power Pack provides 1 - 6.75 hours of light on a single charge and fully recharges via a USB adaptor in 2.5 hours. Power Packs can be swapped out in seconds with no tools. Additional Power Packs are available as separate accessories to extend usage time.
  • Tri-Lens® Technology
    The Rugo™ R1S and RCS have three interchangeable lens settings, allowing the user to adapt to different uses:

    • Spot = 25° Best for distance. R1S has maximum operational distance of 100 ft (30 m). RCS has maximum operational distance of 50 ft (15 m).
    • Area = 55° Best for mid-range. Both R1S and RCS have maximum operational distance of 30 ft (9 m).
    • Flood = 120° Best for close-up. Both R1S and RCS have maximum operational distance of 10 ft (3 m).
  • Durability
    All Rugo™ lights have a rugged built-to-last design. They are impact resistant and fully submersible up to 10 ft (3 m). They also meets NFPA fire resistant requirements and can be decontaminated after use. The Rugo™ lights are backed by a Limited Lifetime Warranty.

Specifications

Lumens 70 - 700 Lumens
Battery Life 1 - 6.75 Hours
Power Source Rechargeable Lithium-Ion Battery System (Quick Swap® Power Pack with Strobe)
Modes for Quick Swap® Power Pack with Strobe (orange button) 4 (Low, Medium, High, Strobe)
Total Weight 13.2 oz (374 g)
Rugo Weight Each Rugo™ is 5.6 oz (158 g) with Power Pack and Light Head
Quick Swap® Power Pack Weight 2.6 oz (73 g)
Mount Weight 1 oz (28 g)
Dimensions for Rugo™ 2.9 x 1.0 x 2.0 in (74 x 25 x 50 mm)
Certifications CE-EMC, CE-LVD
Ingress Protection IPX7
Fire Resistant Meets Requirements of NFPA 1971-8.6 (2013)
Waterproof 60 ft for Rugo™ with Quick Swap® Power Pack with Strobe
Impact Resistant 22.9 ft (7 m)
Color Temperature 5700K, 70 CRI
LED Color White
Materials Black Nylon 66 Power Pack, Orange switch cover, Black aluminum housing, Clear Tri-Lens®
Max Beam Distance Up to 100 ft (30 m)
Adaptor Input AC 100-240V, 50/60 Hz
Recharge Time 2.5 hours
Beam Angle 25 Degree Spot, 55 Degree Area, 120 Degree Flood
Features Rechargeable Quick Swap® Power Pack
Tri-Lens® Technology
Warranty Limited Lifetime Warranty
What's Included (2) Rugo™ R1S Lights, (4) thumbscrews, USB Cable, (1) set of Mounts
Optional Accessories Replacement Quick Swap® Power Pack, Yellow Switch Cover, P/N N50-200
Replacement Quick Swap® Power Pack, Orange Switch Cover, P/N N50-220
Handlebar / Drone Mount, P/N 85-026
Rugo™ Drone Mount for YUNEEC H520 and Typhoon H, P/N 85-023
Rugo™ Drone Mount for DJI Phantom 4, P/N 85-027
Rugo™ Drone Mount 16mm DJI Matrice 200/210 & AEE Mach 4, P/N 85-032
Rugo™ Red, Blue & Green Lens Set, P/N 50-132
Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Click here to read more information about Prop 65.

WARNING
Avoid INJURY and DAMAGE. FoxFury Authorized attachments ONLY.

Manuals

Rugo™ Manual

Rugo™ Quick Start Guide

Rugo™ Drone Mounts for DJI Phantom



Rugo™ Series Spec Sheet

Rugo™ Drone Mounts for DJI Phantom
